Boat Monitor 32
What Is It?
Stay connected to your boat anywhere. Monitor live data, receive alerts, and control onboard systems with Boat Monitor 32 hardware + app.
Key Features
Live Monitoring – Check your boat’s status instantly, including bilge switch activity, battery voltage, cabin temperature, humidity, and fire panel signals.
Custom Alerts – Get notified when conditions change, such as rising water levels, low batteries, or triggered alarms.
Remote Control – Manage onboard systems and relays directly from your phone.
Graphical Insights – View historical charts of voltage, temperature, and sensor data to spot trends and anticipate issues.
Device Management – Pair multiple Boat Monitor 32 devices and switch between them with ease.
Secure Connectivity – Built with modern cloud, MQTT, and BLE technologies for reliable data transfer and control.
Why Boat Monitor 32?
Boats are exposed to changing conditions that can quickly turn into problems if unnoticed. With Boat Monitor 32, you have constant visibility over your vessel’s safety systems — no matter where you are. Designed specifically for boat owners, it helps you prevent damage, plan maintenance, and enjoy confidence on and off the water.
Hardware Requirement
The Boat Monitor 32 hardware unit is required to use this app. Hardware is sold separately. Once installed onboard, simply connect the device to your Boat Monitor 32 app to begin monitoring.
Peace of Mind at Sea and Ashore
Protect your investment with early alerts.
Save time by checking your boat remotely instead of traveling to the marina.
Stay confident that your vessel is safe, even when you’re away.
The Boat Monitor 32 system is designed by boaters, for boaters — combining reliable hardware with an easy-to-use mobile app that puts control at your fingertips.

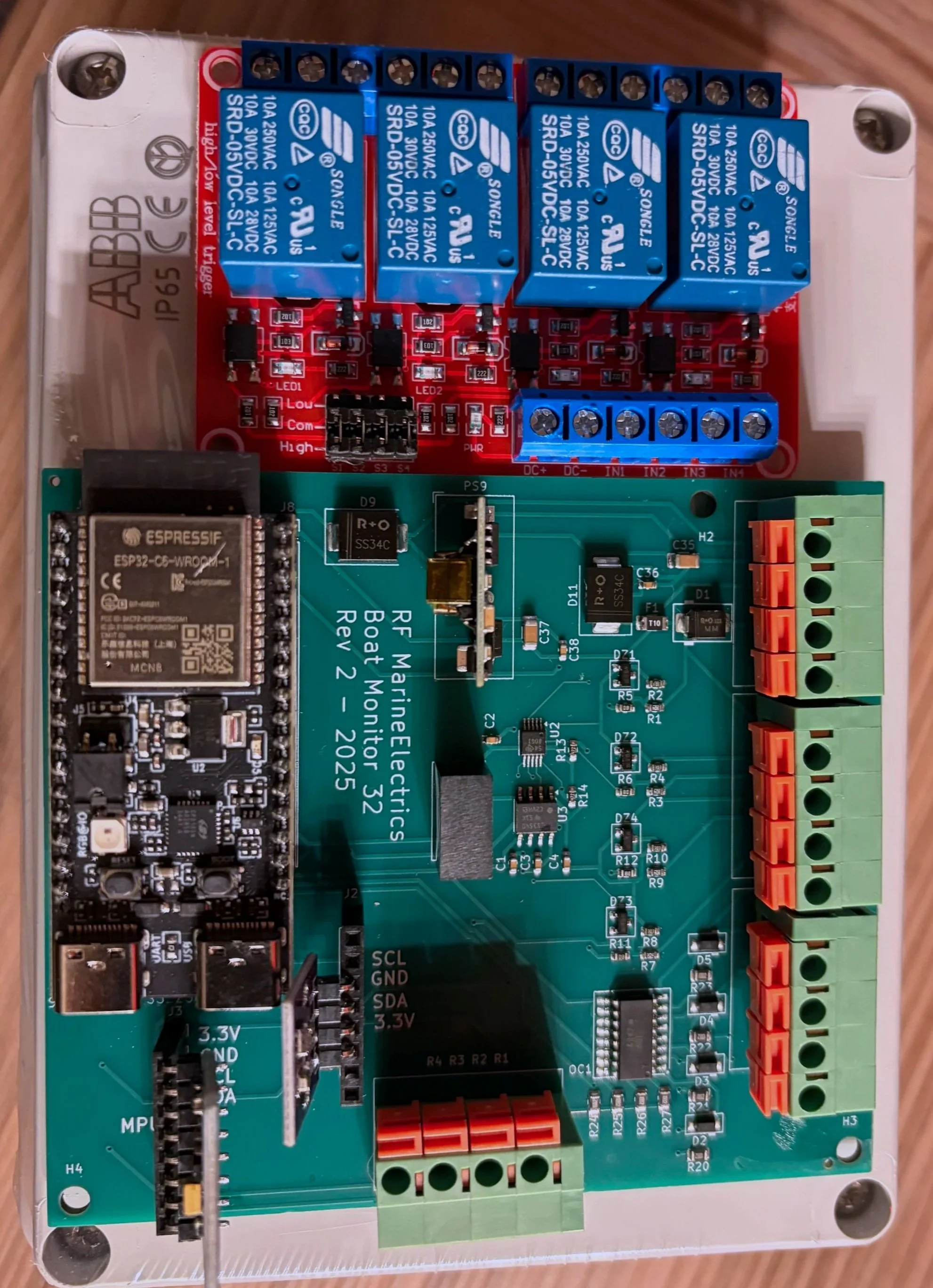

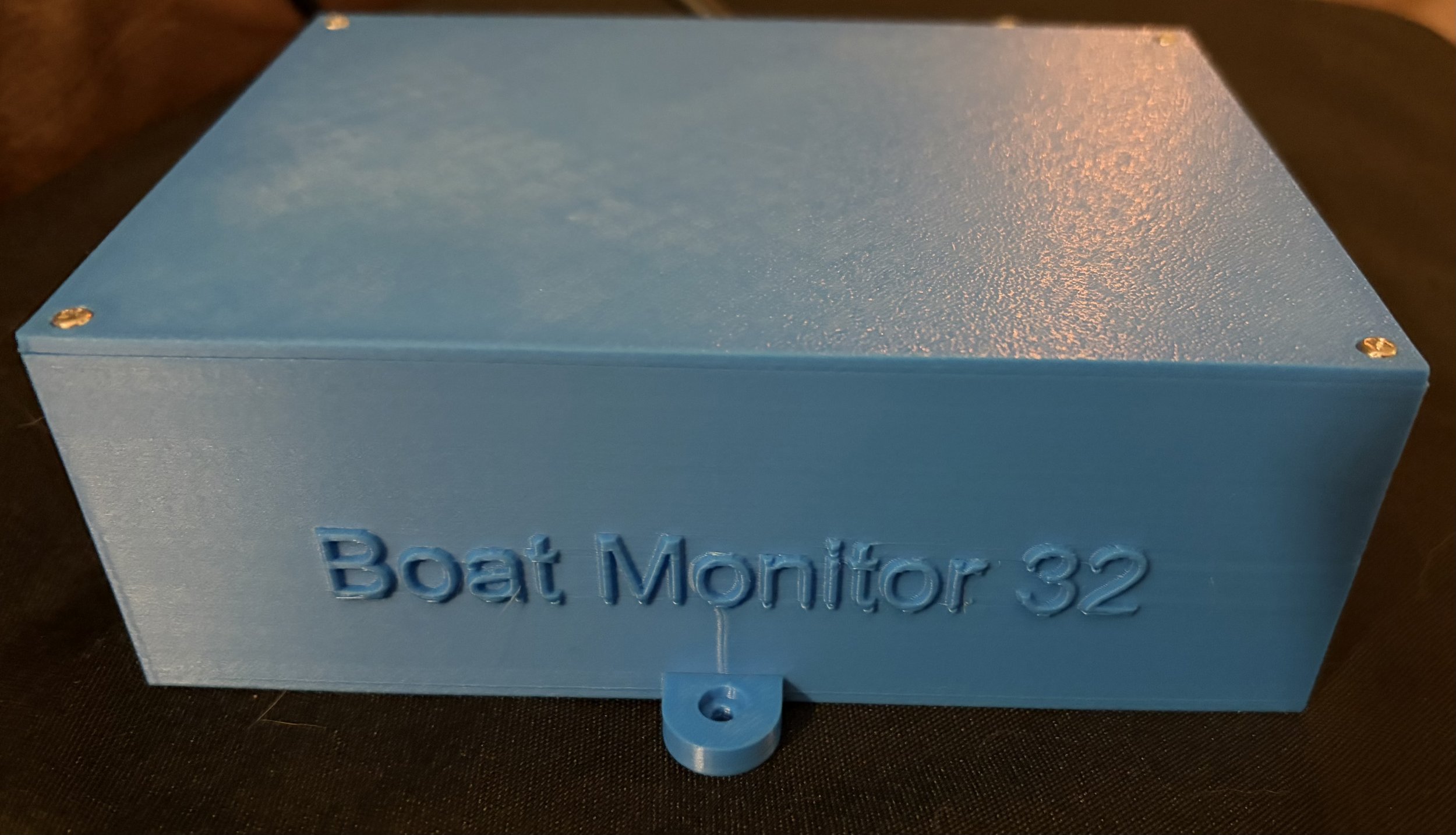

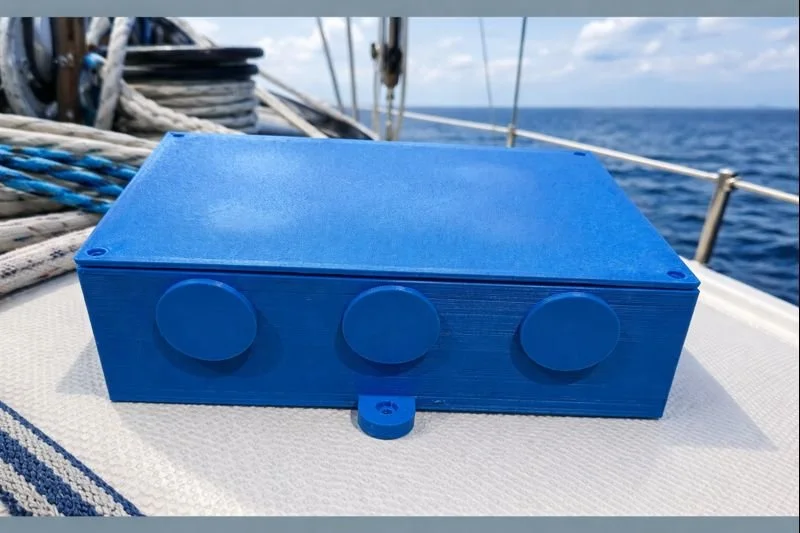

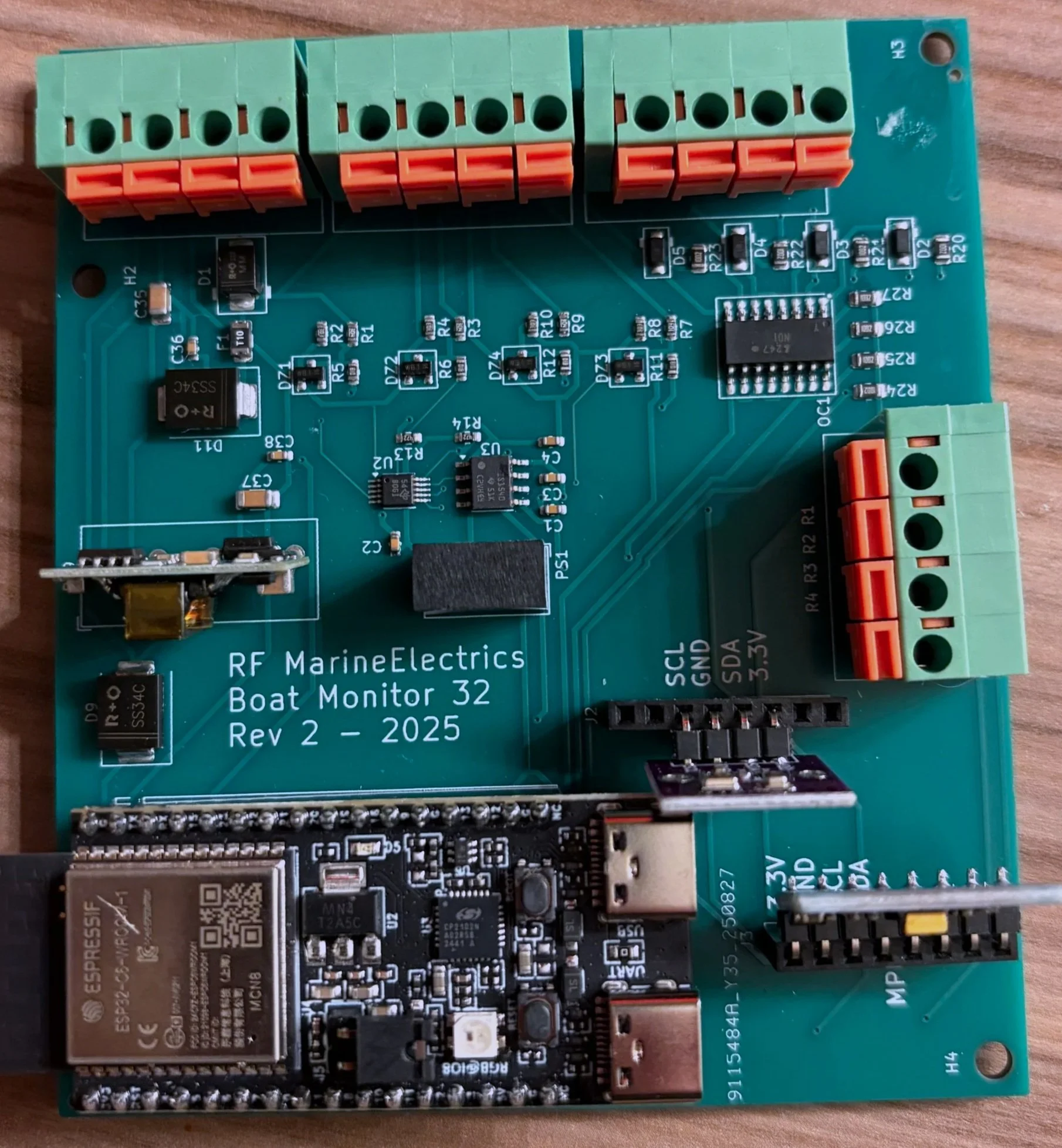

The Hardware
4 Analouge Inputs (up to 30V dc). Analouge input one also provides the device power.
4 Digital Inputs (up to 30v dc).

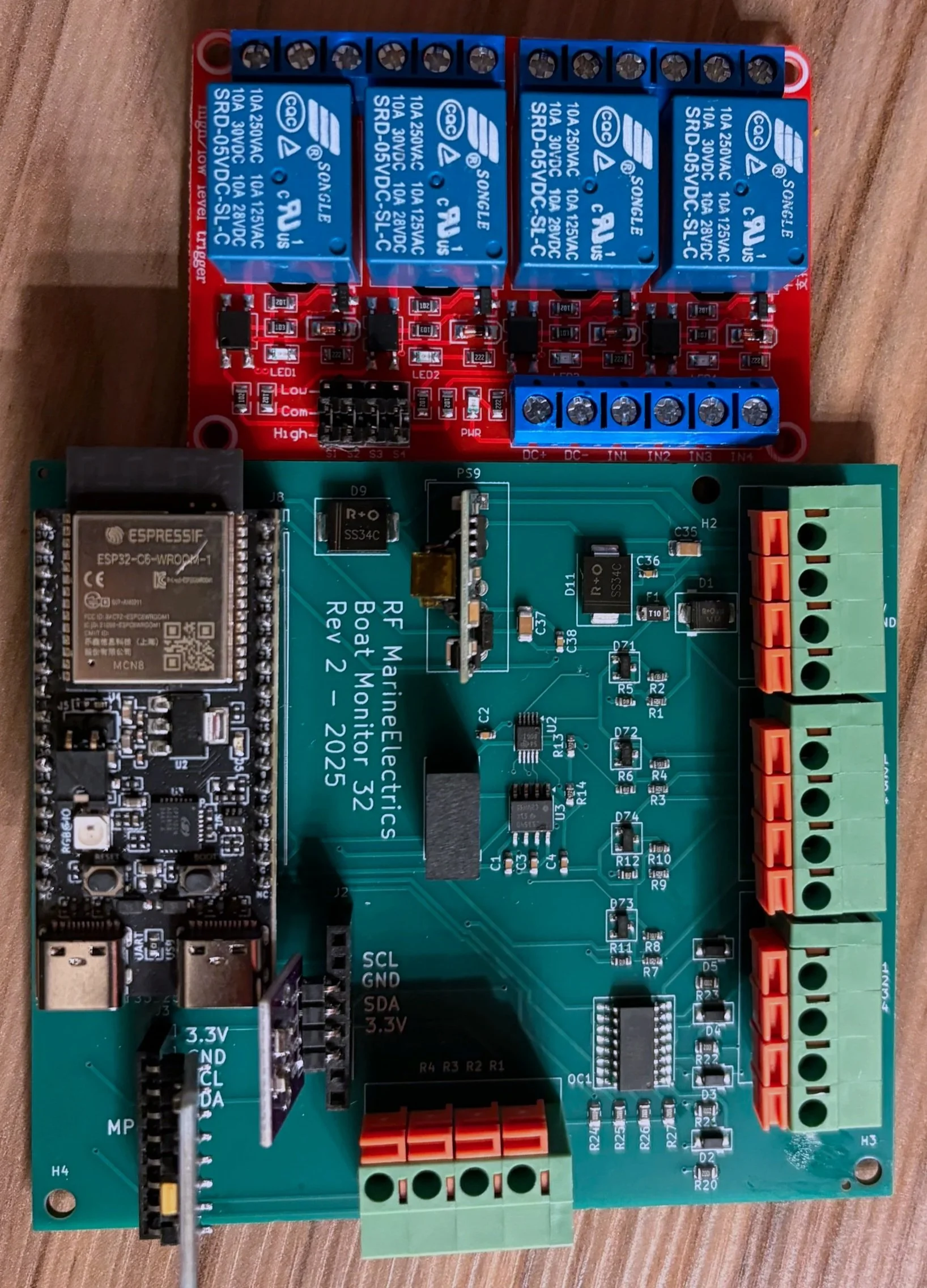

4 Didgital outputs designed to power relays with a 5v dc coil.
6 axis sensor for roll and pitch
Temperature Sensor
Humidity Sensor
Atmospheric Sensor
WIFI and Bluetooth (a WIFI network is required to get the most out of the device.

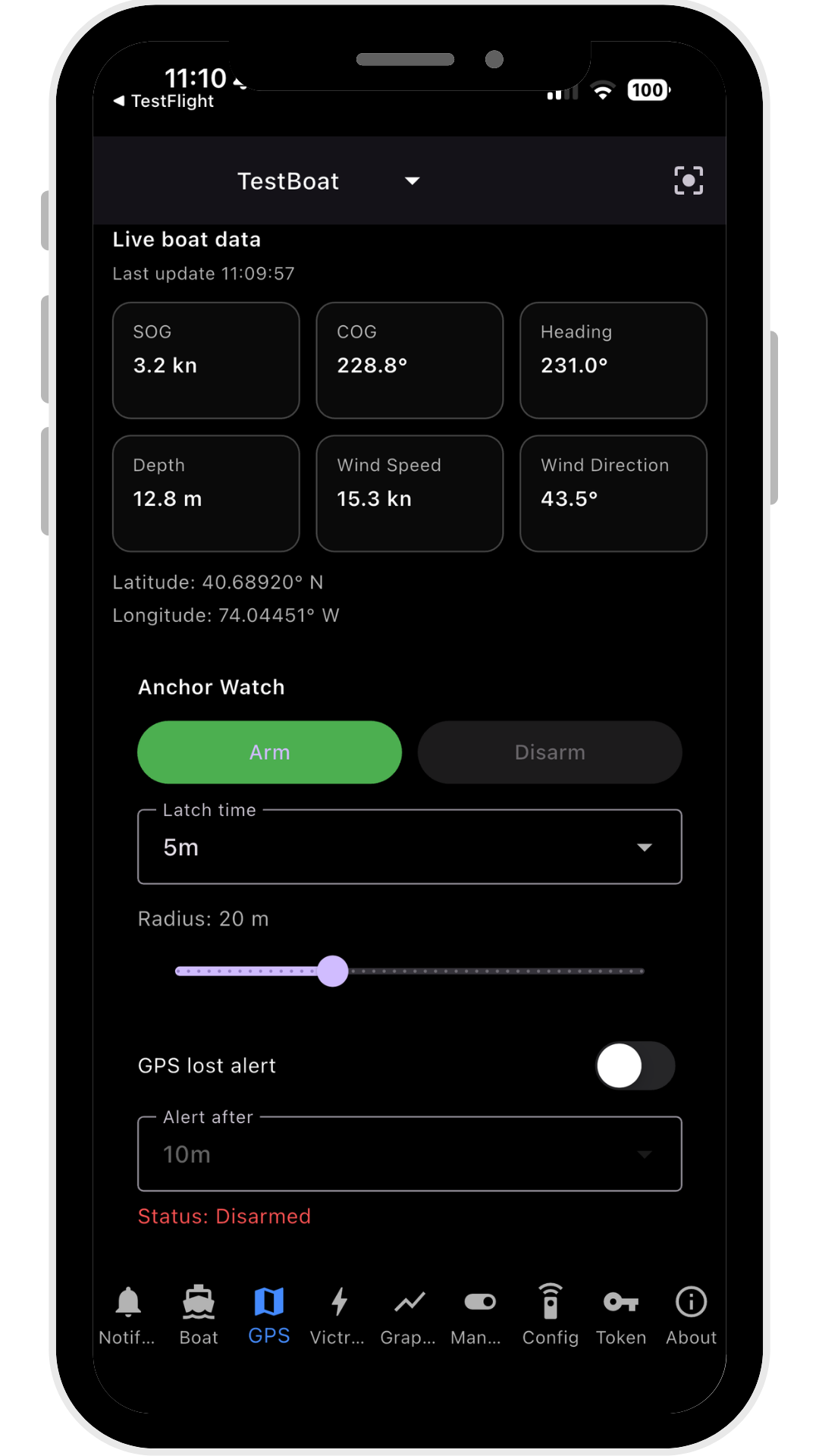

The Software
The Boat Monitor 32 app is an IOS app so an Iphone or Ipad is required.
The app provides the facility to:
Recieve notifications

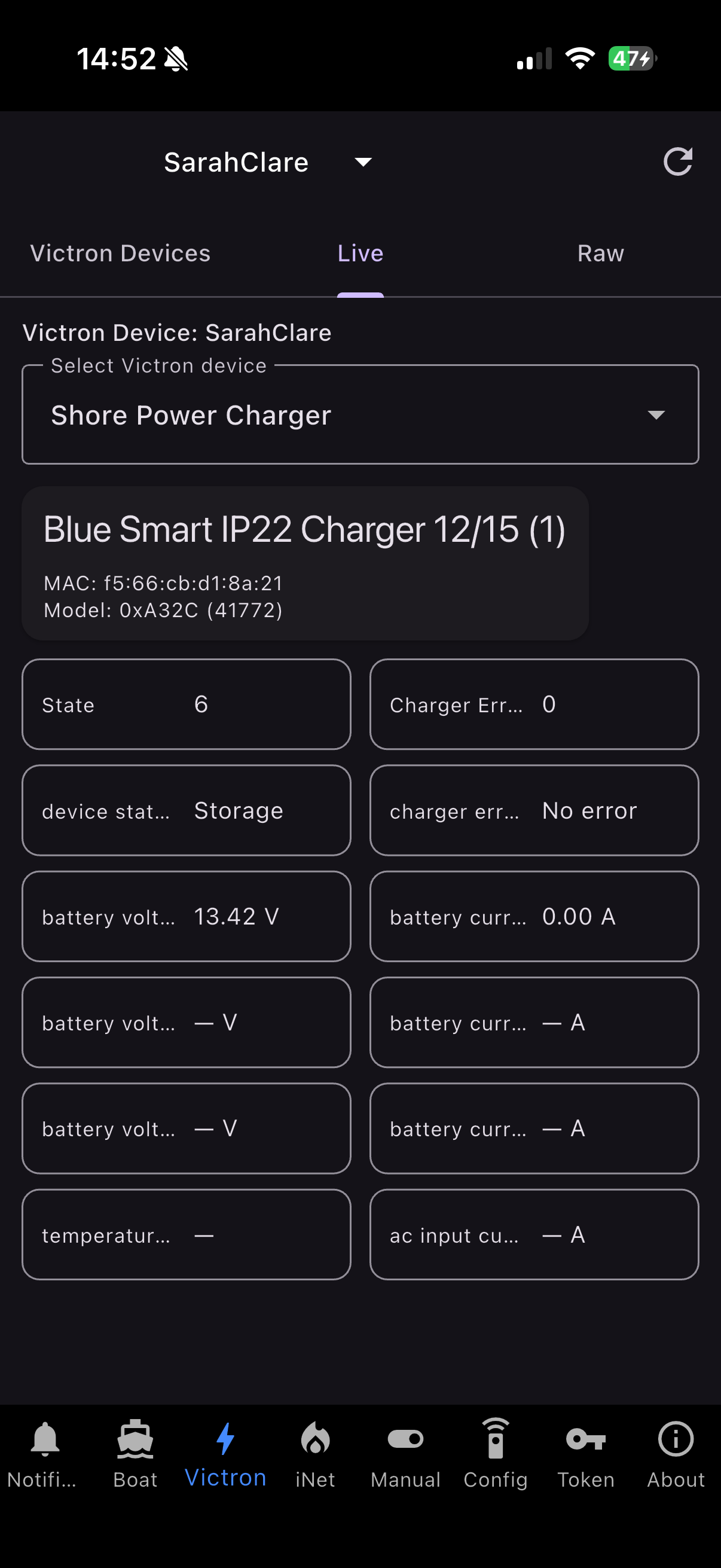

View live data
View and graph historical data
Manually control the 4 outputs
Configure the device including the ability to control the outputs from a the inputs with advance logic allowing a combination of inputs to control 1 output, the facility to implement delays both delaying the output going on and delaying the output going off

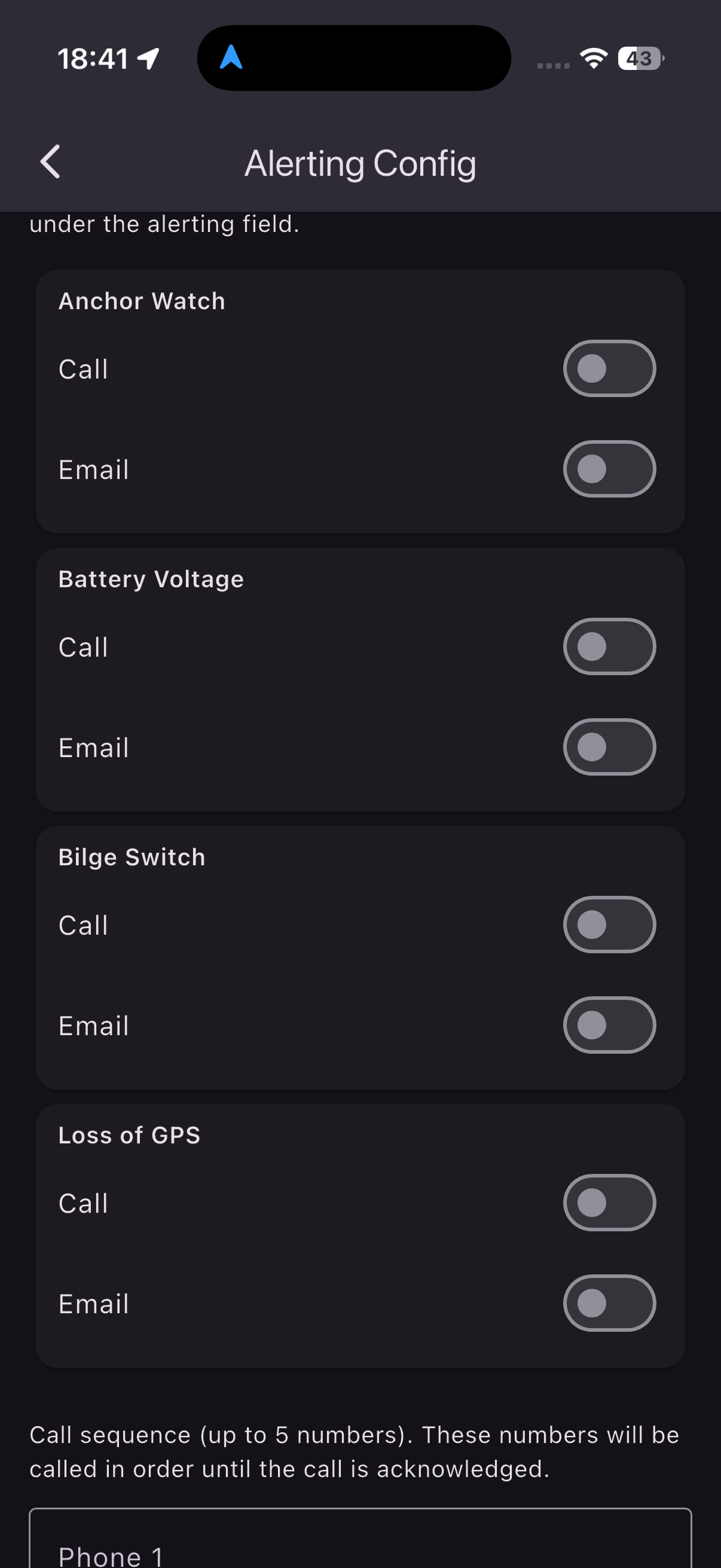

Configure notifications to your phone based on the input status.
Set up the WIFI networks
Name the inputs and outputs
Recent implementations.
Monitoring a donkey engine used to circulate water in a crab hold - remote notifications if engine stops, suffers high temperature, low oil pressure or alternator failure.
Montoring battery voltages and bilge levels for an unnatended vessel.
Remote operation of bilge pumps
Facilitating a bilge pump over run delay to full empty bilge after level switch clears.
Local alarm and remote notification if a bilge pump is on for an extended period indicating stuck level switch.
What do I need?
Basic wiring skills to hook it up. At it’s most basic it needs 2 wires, positive and negatice. This will power the device and give you visibility of your battery voltage.
WIFI - Either onboard, marina or a 4G/5G dongle (sims cost as little as £4 a month.
An IOS device to downlad the App - Iphone or Ipad.
